The Sensazone electronic management system controls water flow with solenoid valves and is designed to control up to three 2W 2/2 bi-stable (latching) solenoid valves per washroom area sensor. If motion is detected by the infrared sensor the valves open to supply water to building zones, as required (e.g. washrooms or kitchens). If no movement is detected for a pre-set period (configurable to 15 or 30 minutes), water supply is cut off.
The Sensazone Additional Sensor Kit allows for installations to be tailored to precisely match building requirements.

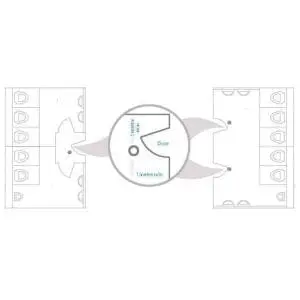

A maximum of 10 Sensazone sensors can be used per system. Sensors should be positioned at least 1 metre from entrances. If cables are extended, 1.00mm2 CSA cable must be used.
A maximum of 3 Sensazone solenoid valves can be connected to any sensor. Up to 3 valves can be connected in parallel and the furthest solenoid valve should not be more than 10 metres cable length (1.5mm2 CSA) from the sensor.
Here is a selection of documents, designed to ease specification and installation:
BIM objects are available for download from the NBS National BIM Library, in both Revit and IFC formats.
Click here to view Cistermiser products on the National BIM Library
Parts only warranty (no labour) for equipment purchased in the United Kingdom, Ireland, Isle of Man and the Channel Islands. Components of the unit which are proven to be faulty or defective in manufacture will be exchanged or repaired.
1 Year from Date of Manufacture
3 Years from Date of Installation
To register and qualify for Extended Warranty cover, the Cistermiser product must be correctly installed with the Commissioning Checklist fully completed as itemised in the Installation Guide (included with the product), to demonstrate compliance with the product installation instructions.
Each Commissioning Checklist activity should be dated and additional warranty details provided to enable registration: product serial number, installation date, installation site address and the installer’s name and contact details.
Extended Warranty can be registered online (via the Warranty section of this website) or by completing and returning the Commissioning Checklist from the Installation Guide (included with the product) to this address: Cistermiser Ltd, Unit 1, Woodley Park Estate, 59-69 Reading Road, Woodley, Berkshire RG5 3AN.
4 x Variations
for modular Sensazone washroom control system applications, 15mm, 22mm, 1" and 1 1/4" valve size options
for modular Sensazone washroom control system applications
4 x Variations
For control of washroom water supplies, complete with motion-detection occupancy sensor, solenoid valve and mains power adapter
for use with Direct Flush, Easyflush, Infrared Taps and Sensazone washroom control systems
Remote control programming handset for use with infrared products, excluding IRC
2 x Variations
for Sensazone washroom control systems
