Deck-mounted mixer basin tap, with infrared sensor for hygienic hands-free, non-touch operation, temperature control, mains or battery powered internal valve and 3.5 or 5.0 litre per minute flow rate options
Deck-mounted mixer basin tap, with infrared sensor for hygienic hands-free, non-touch operation, temperature control, mains or battery powered internal valve and 3.5 or 5.0 litre per minute flow rate options
£320.40Price (incl. VAT)
Quantity
SKUVSMT
Total Cost£320.40
DescriptionVecta+ Sensor Mixer Tap - Deck-mounted single supply basin tap, with temperature control and infrared sensor for hygienic hands-free, non-touch operation, mains or battery powered external valve and 3.5 or 5.0 litre per minute flow rate options
The Vecta+ Sensor Tap range are easy to install, as retrofit or new build installations. They help to improve hygiene and prevent the transfer of pathogens with no-touch controls. With an infrared tap, the water only runs while your hands are in range, so these taps reduce wasted water, increase efficiency, save energy and reduce costs, while maintaining reliability and high performance.
Made to high standards, with options for mains or battery power, out of the box as standard. Our range of infrared sensor taps have a stylish and modern design, with highly intelligent electronics, that offer a safeguard to misuse and vandalism. They provide the optimum in hygiene for the modern-day commercial washroom and comes fitted with 3.5lpm flow regulator as standard with a 5lpm flow regulator in the box, to support environmental building schemes such as BREEAM.

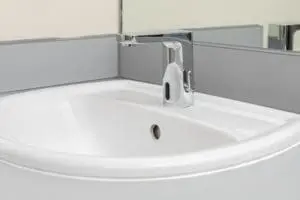

Vecta plus Sensor Mixer Tap from Cistermiser
Features and Benefits
Improved hygiene and reduce the transfer of infection
Non touch – intuitive and easy to use. These non touch solutions are more hygienic and reduce the likelihood of spreading and receiving pathogens
Temperature control – adjust the temperature of the water flow with the nozzle located on the side of the tap
Water saving and energy efficient – the Vecta+ Sensor Tap contributes to building and environmental schemes, BREEAM
Easy to install and maintain – chrome finished, easy to retrofit and swap out existing manual taps. External solenoid for easier servicing
Mains and battery power options out of the box
Safety shutoff – after 60 seconds of continuous water activation via sensor detection, the tap will automatically stop the flow of water to reduce the risk of flooding
Smart shutoff – in the event of a power cut the device will automatically switch off the water flow to reduce the risk of a flooding event
Support environmental building schemes
Suitable for elderly or people with reduced mobility
Optional extra – can added copper inlet pipes (tails)
3.5 Litres per minute: The Water Regulations require that the flow rate of a tap does not exceed 3.6 litres per minute where basins have no plug. The Vecta Plus Sensor tap configured with a 3.5 litres per minute limit will ensure compliance in such applications. This model of flow restrictor is non-aerated and thus suitable for high risk applications such as medical facilities and care homes, where the risk to users of legionella and other water-carried respiratory contracted viruses/bacteria is high.
Aerators/Nozzles: Vecta+ Sensor infrared taps are supplied with interchangeable nozzle/aerators to allow the outlets to be configured to either a 3.5 or 5 litres per minute flow rate.
Dimensions
150mm W x 133mm H x 47mm D, Spray nozzle height above basin surface 111mm, Spray nozzle projection from tap body 83mm
Mounting requirements
Any horizontal surface up 10mm to 40mm in thickness, requires a hole of 28-32mm in diameter
Water supply
0.5 to 6 bar operating pressure
Sensor range
Up to 18cm
Run-on time
2 seconds
Power requirements
6V DC from 4 x alkaline AA (LR6) batteries or 6V DC regulated from mains adaptor (1A fused spur required)
Battery life
2 years in normal conditions with recommended batteries (a single red flashing of the LED indicates that the batteries are low and need to be replaced)
Electronic specification - power transformer
100-250v AC 50/60Hz 0.2A MAX
Electronic specification - Mixer tap supply
6V DC 1A MAX (batteries or power transformer)
Ambient temperature range
Operating: 0 to 40⁰C
Storage
-25 to 40⁰C
The flow of water from the taps is turned on when the user presents their hands to the infrared sensor which is located on the lower body of the Vecta+ Sensor Tap.
The infrared tap sends out an infrared LED bean (invisible to the human eye). When something interrupts this infrared beam, for example the user’s hand, the infrared light is bounced back to the receiver in the taps, which switches on the solenoid valve, to allow the water to flow.
No contact is required. The sensor automatically activates the externally-sited solenoid valve. When the user’s hands are moved away the flow of water stops after a 2 second delay.
Here is a selection of documents, designed to ease specification and installation:
Parts only warranty (no labour) for equipment purchased in the United Kingdom, Ireland, Isle of Man and the Channel Islands. Components of the unit which are proven to be faulty or defective in manufacture will be exchanged or repaired.
Warranty Period
1 Year from Date of Manufacture
Extended Warranty Period (available on Registration)
3 Years from Date of Installation
Extended Warranty Terms
To register and qualify for Extended Warranty cover, the Cistermiser product must be correctly installed with the Commissioning Checklist fully completed as itemised in the Installation Guide (included with the product), to demonstrate compliance with the product installation instructions.
Each Commissioning Checklist activity should be dated and additional warranty details provided to enable registration: product serial number, installation date, installation site address and the installer’s name and contact details.
Extended Warranty can be registered online (via the Warranty section of this website) or by completing and returning the Commissioning Checklist from the Installation Guide (included with the product) to this address: Cistermiser Ltd, Unit 1, Woodley Park Estate, 59-69 Reading Road, Woodley, Berkshire RG5 3AN.
Deck-mounted single supply basin tap, with infrared sensor for hygienic hands-free non-touch operation, mains or battery-powered internal valve and 3.5 or 5.0 litre per minute flow rate options
Wall / panel mounted single supply basin tap, with infrared sensor for hygienic hands-free, non-touch operation, mains or battery powered external valve and 3.5 or 5.0 litre per minute flow rate options
Deck-mounted single supply basin tap, with infrared sensor for hygienic hands-free, non-touch operation, mains or battery powered external valve and 3.5 or 5.0 litre per minute flow rate options
For the Vecta+ Sensor Mixer Tap - 1 x fitting plate, 1 x fitting gasket (white), 2 x check valve & fittings, 1 x fixing rod & nut, 2 x inlet filer, 1 x tap body O ring, 1 x 5 ltr/min aerator - orange
Observation – The sensor is flashing read continuously after hand is placed in sensing range
Action – Low battery. Change batteries
Observation – The sensor is not flashing at all when hands are in sensing range
Action – Battery power: Low battery. Change batteries. Mains power: Poor DC contact. Check power transformer connection
Observation – The sensor flashes red once when hands are in sensing range
Action – Water supply: Ensure water supply has been turned on and there is good working pressure. Minimum dynamic pressure 0.5 bar.
Action – Filter blockage: Vecta+ Sensor Tap or Vecta+ Sensor Spout: Check filter in flexible hose. Vecta+ Sensor Mixer Tap: Check filter in inlet to solenoid valve
Observation – The sensor is covered
Action – Anti-vandal mode has been triggered. The object/debris needs to be removed and the tap will resume normal functionality
Q
Continuous flow of water or dripping from the tap
A
Observation – Water is flowing when no user is present
Action – Water supply. Ensure water pressure is between 0.5 bar and 6 bar.
Action – Filters: Ensure filters are clear, clean if required. Vecta+ Sensor Tap and Spout filter is in inlet to control box. Vectra+ Mixer Tap filter is in flexi-hose fitting.
Debris in solenoid valve: Contact Cistermiser
Q
Water flow diminished
A
Observation – The sensor flashes red once when hands are in sensing range
Action – Filter is blocked with scale or debris.
Vecta+ Sensor Tap or Vecta+ Sensor Spout: Check filter in the inlet to the solenoid
Vecta+ Sensor Mixer Tap: Check filter within the flexible connector.
Action – Aerator is blocked with scale or debris.
Vecta+ Sensor Spout: Remove aerator from the tap using the key supplied, clean and reinstall
Vecta+ Sensor Tap or Vecta+ Sensor Mixer Tap: Remove aerator with appropriate tools, clean and reinstall.
Q
Inconsistent flow rate
A
Observation – The sensor flashes red once when hands are in sensing range
Action – TMV / water pressure issue: Ensure water supply to TMV is balanced and pressure is suitable for TMV specification.
Q
Water is always cold
A
Observation – The sensor flashes red once when hands are in sensing range
Action – TMV / water pressure issue: Ensure water supply to TMV is balanced and pressure is suitable for TMV specification.
Ensure hot water pipes are insulated to minimise cold dead legs.
